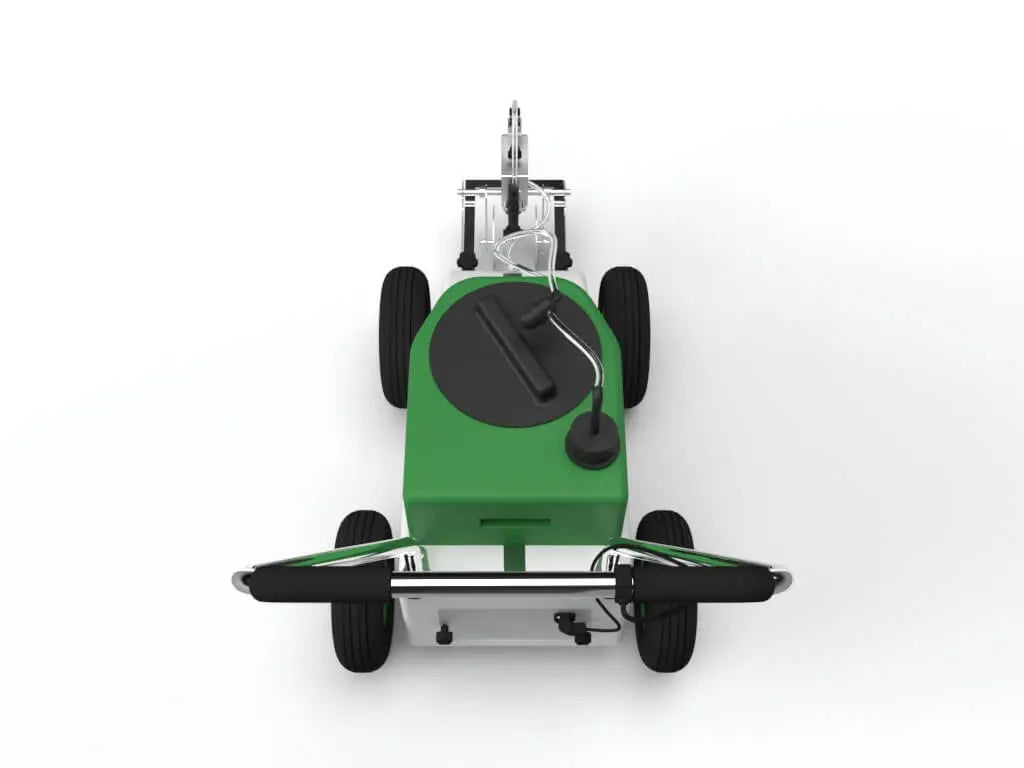

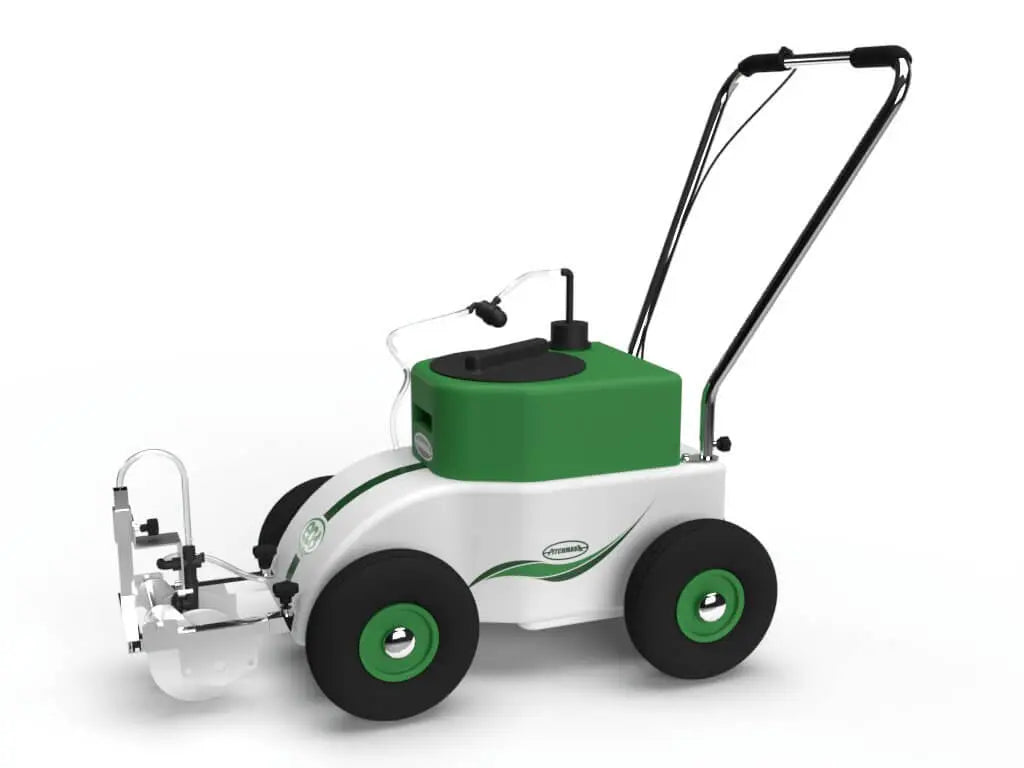

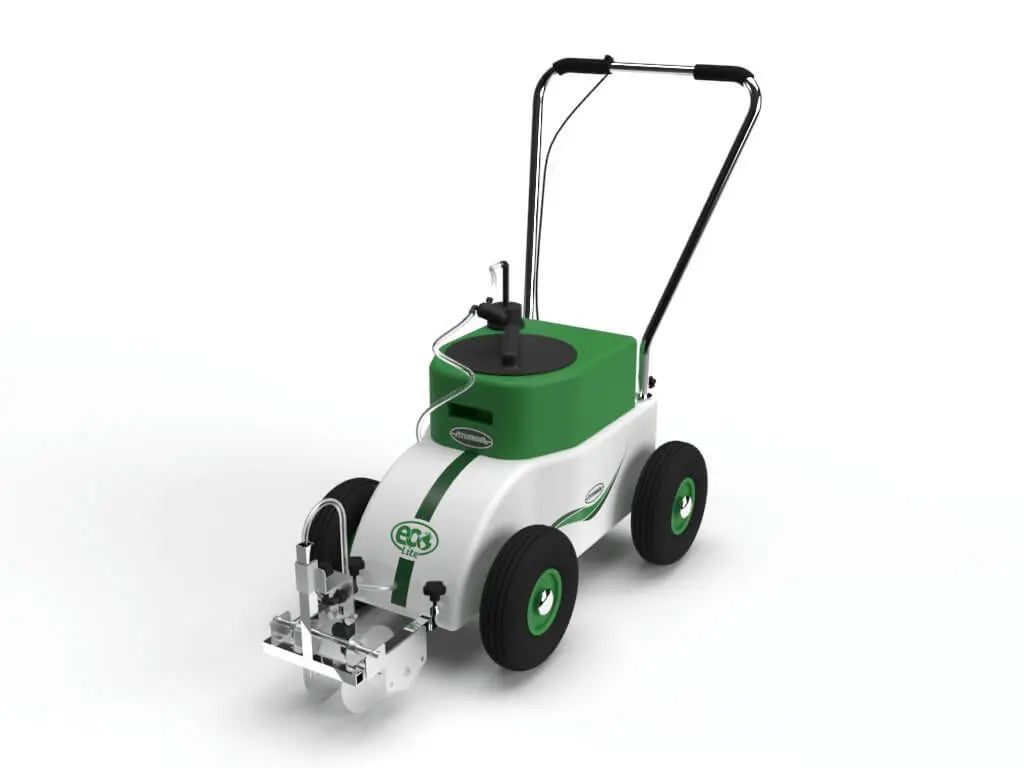

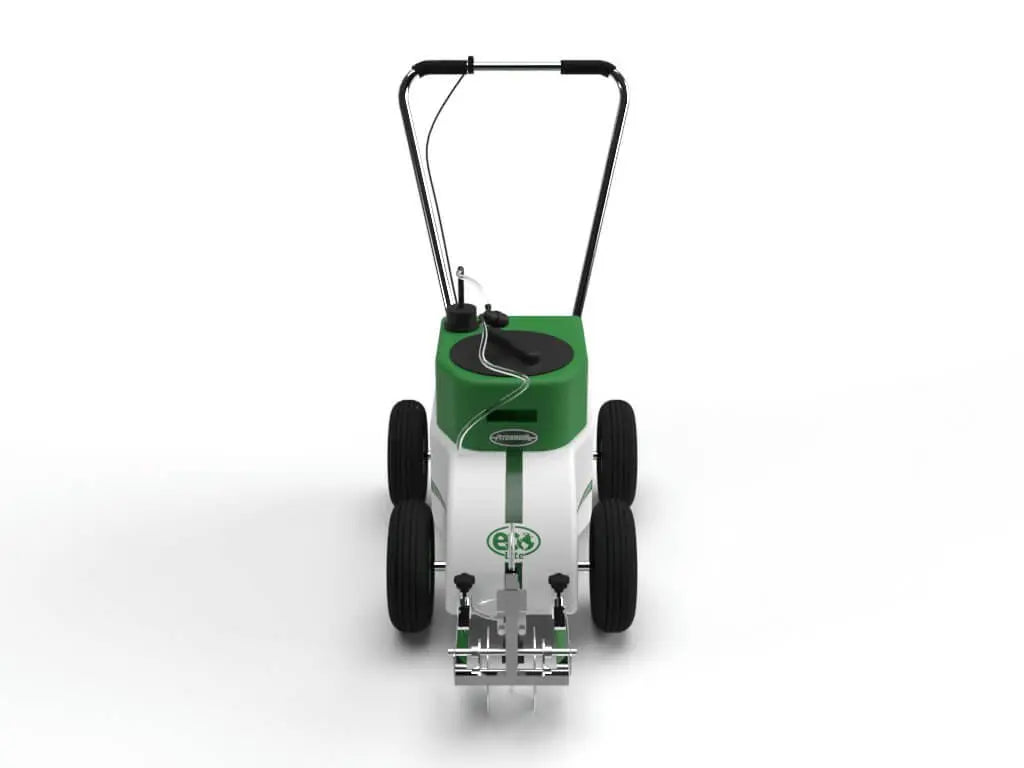

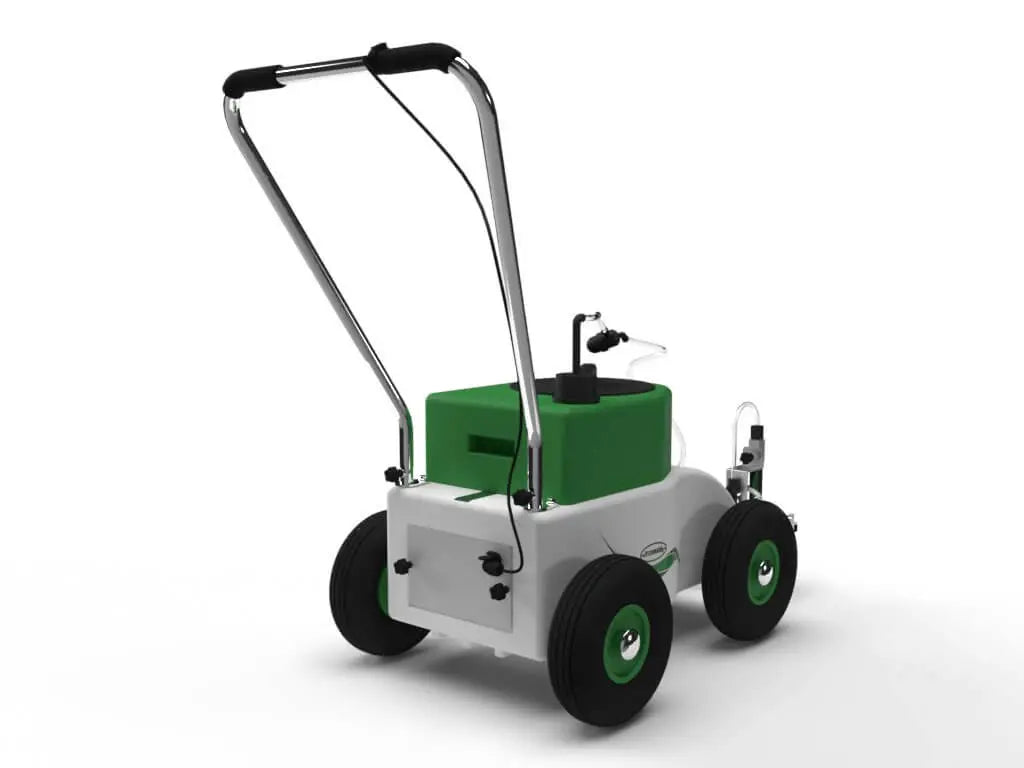

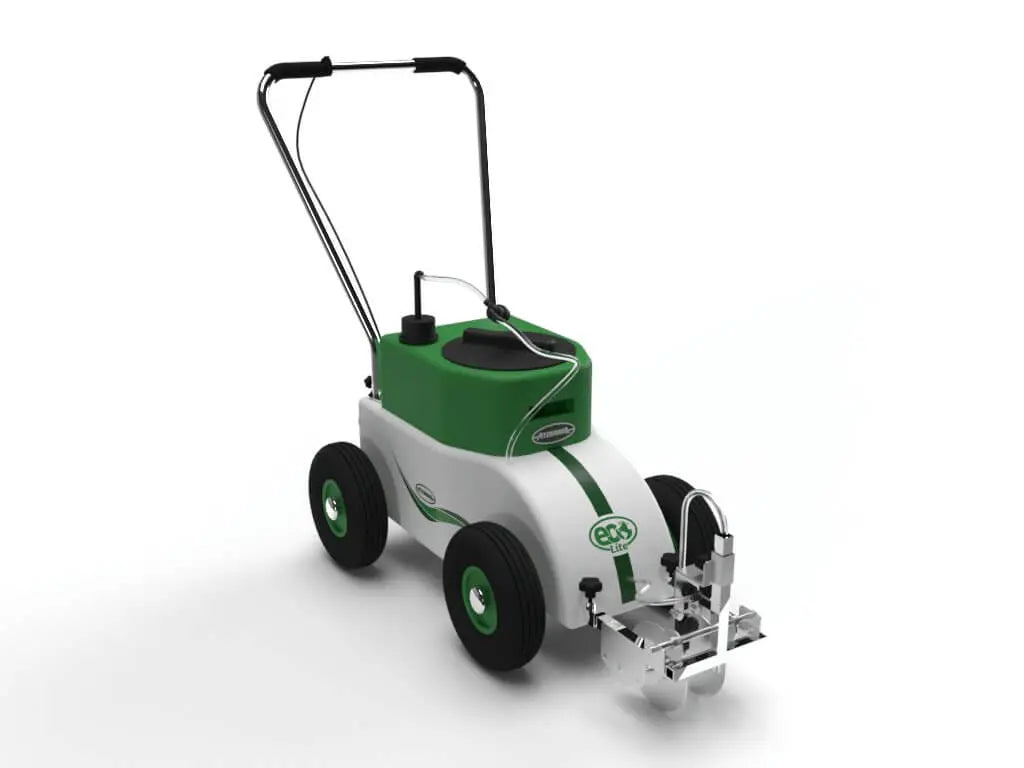

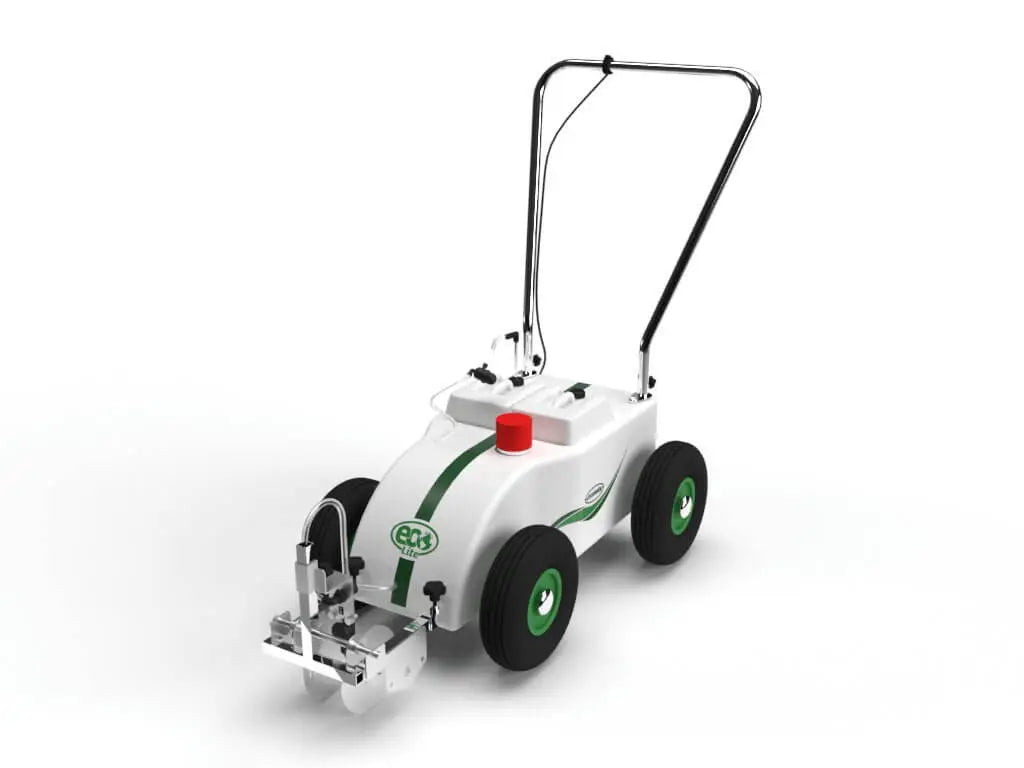

Eco Lite Pitch Spray Marker
Eco Lite Pitch Spray Marker
Couldn't load pickup availability
Low stock: 1 left
Eco Lite Pitch Spray Marker: The Ideal Solution for Sports Field Marking. The Eco Lite is at the pinnacle of line marking in terms of appearance, usability and eco credentials — perfect for clubs and grounds staff who want professional results with minimal effort.
🔧 Complete Your Setup — Recommended Accessories
Keep your Eco Lite performing at its best all season with compatible spare parts and nozzle kits.
| Product | Why You Need It | Price | |
|---|---|---|---|
| Flat Fan Nozzle Kit — Basic | Everything you need to replace worn nozzles — filters and seals included | €25.00 | Add to Cart |
| Green Flat Fan Nozzles — 5 x 110° | Standard flow replacement nozzles — pack of 5 | €29.50 | Add to Cart |
| Yellow Flat Fan Nozzles — 5 x 110° | Higher flow rate — ideal for larger pitches | €29.50 | Add to Cart |
| Complete Flat Fan Nozzle Kit | Full season's worth of spares — green and yellow nozzles, filters and seals | €99.99 | Add to Cart |
🚚 Estimated Delivery: 2–3 working days
🚛 Machines are delivered by pallet. Order by 3pm for delivery between … and ….
Features
Features
The Eco Lite is a battery-powered spray line marker that applies paint via a pump through a sprayhead nozzle
Designed for use on professional natural grass surfaces like football pitches or rugby pitches
Adjustable line width
Body holds 1 x 10L or 2 x 5L containers.
The Eco Lite comes with a standard 3-year manufacturer’s warranty, which can be registered online.
This machine is meticulously crafted by hand by Pitchmark headquarters located in Bristol, UK.
25L tank sold separately as an optional extra.
Specifications
Specifications
Battery: 12v 9ah SLA battery allows the user to mark up to 6 football pitches from one charge.
Line Width (mm): Adjustable - 50 to 150mm.
Construction: High-density polyethylene (HDPE) chassis with zinc-coated parts for longer life
Wheels: Solid puncture-proof wheels for smooth operation on all grass surfaces.
Pump: High-pressure Shurflo diaphragm pump.
Filtration: 2-stage filtration system to prevent nozzle blockages.
Charging: Quick-access charging point for hassle-free recharging.
Optional Extra: 25L drop-in paint tank (green).
Warranty: 3 years manufacturer’s warranty.
Made in Britain: Manufactured to the highest standards.
Care and Maintenance
Care and Maintenance
Clean After Every Use: Flush the system with clean water.
Battery Care: Fully charge the 12V battery after each session.
Regular Inspections: Check nozzles, tubing, fittings, and pump for wear. Replace parts if needed.
Storage: Store in a dry, frost-free environment.
