Fusion Pitchmark Spray Marker

Fusion Pitchmark Spray Marker

€1,425.00 EUR
€1,425.00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Add 25L Paint Tank?:

In stock

Affordability, performance, and appearance make the Fusion line marking machine an excellent choice for clubs and groundskeepers looking for professional results without the premium price tag.

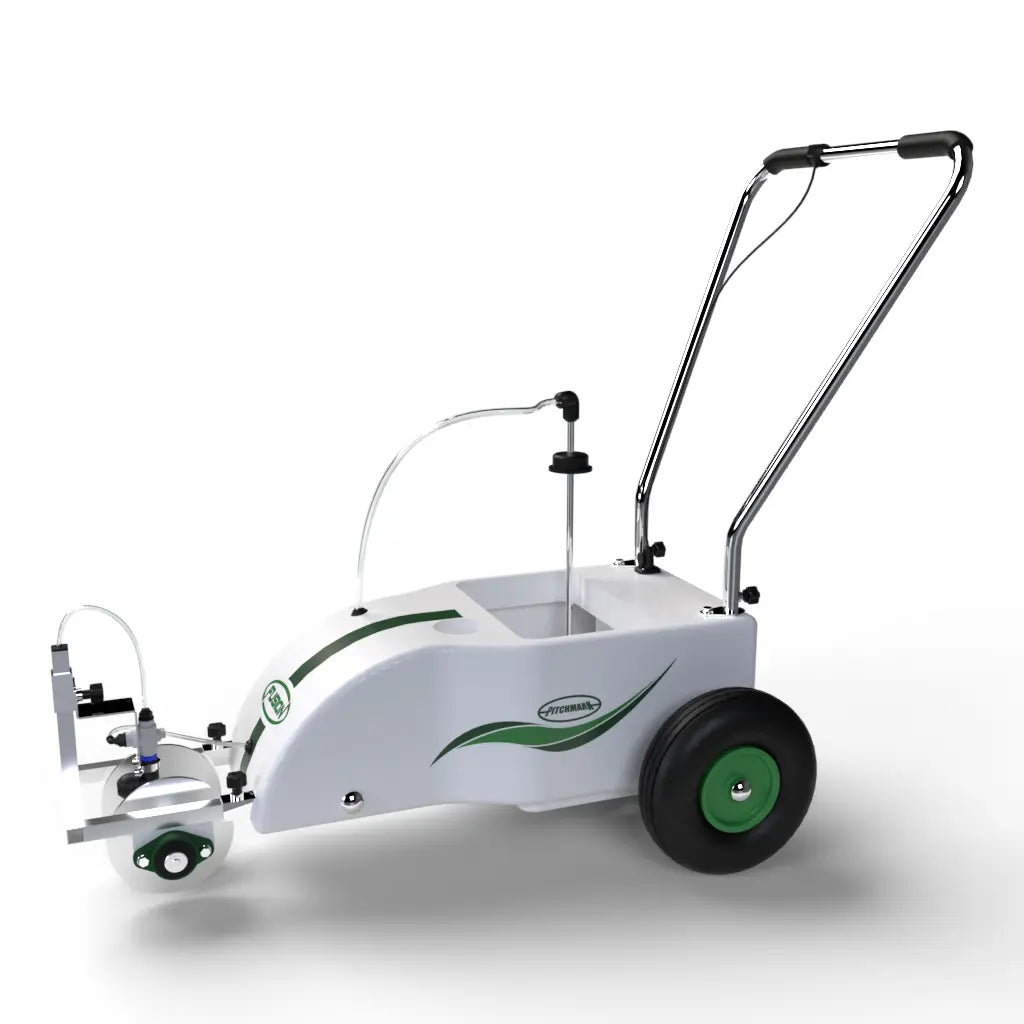

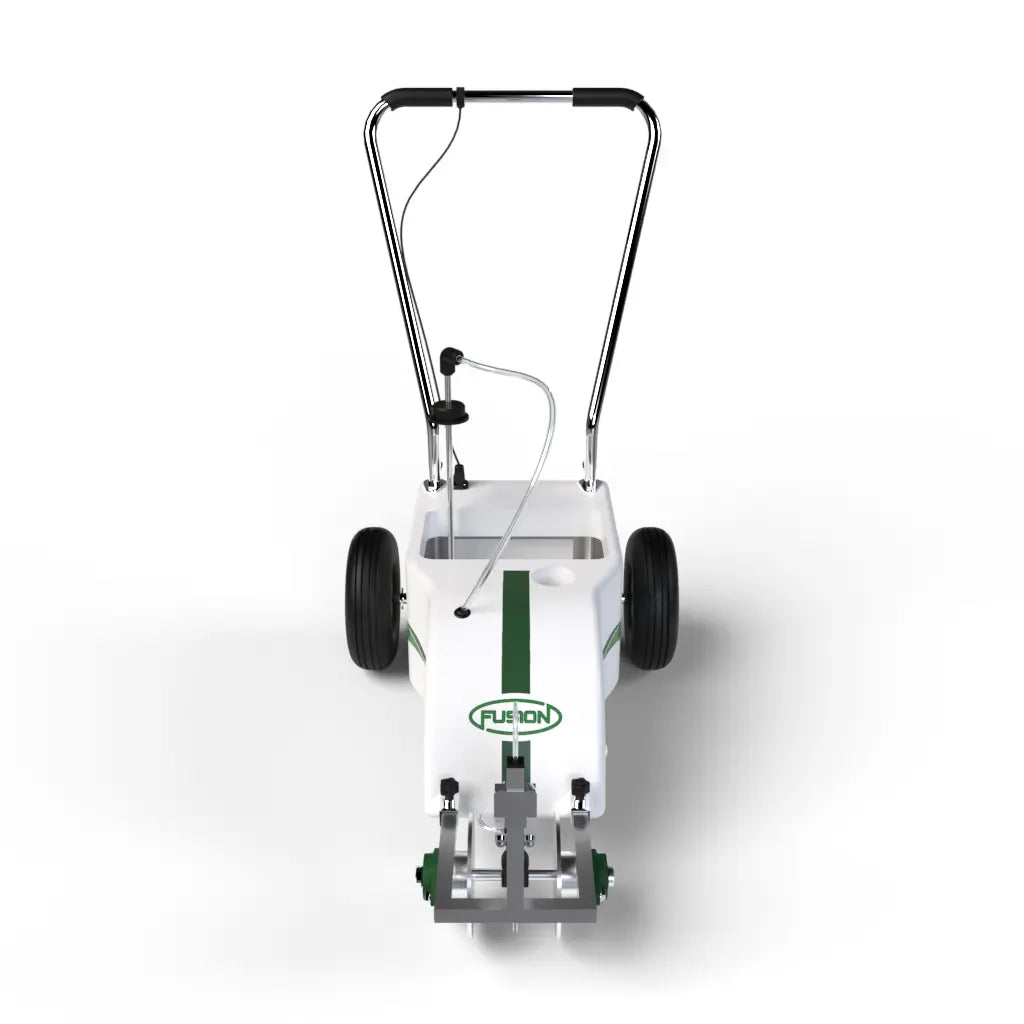

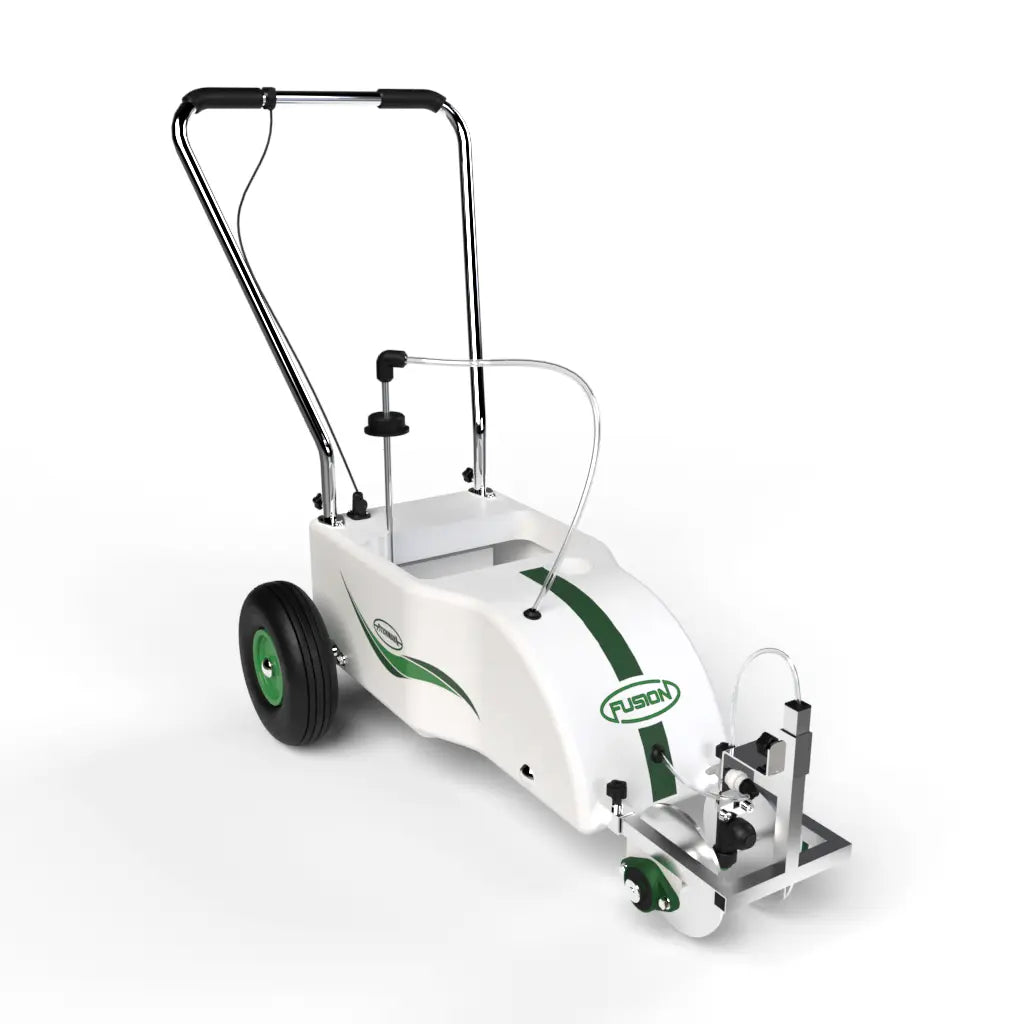

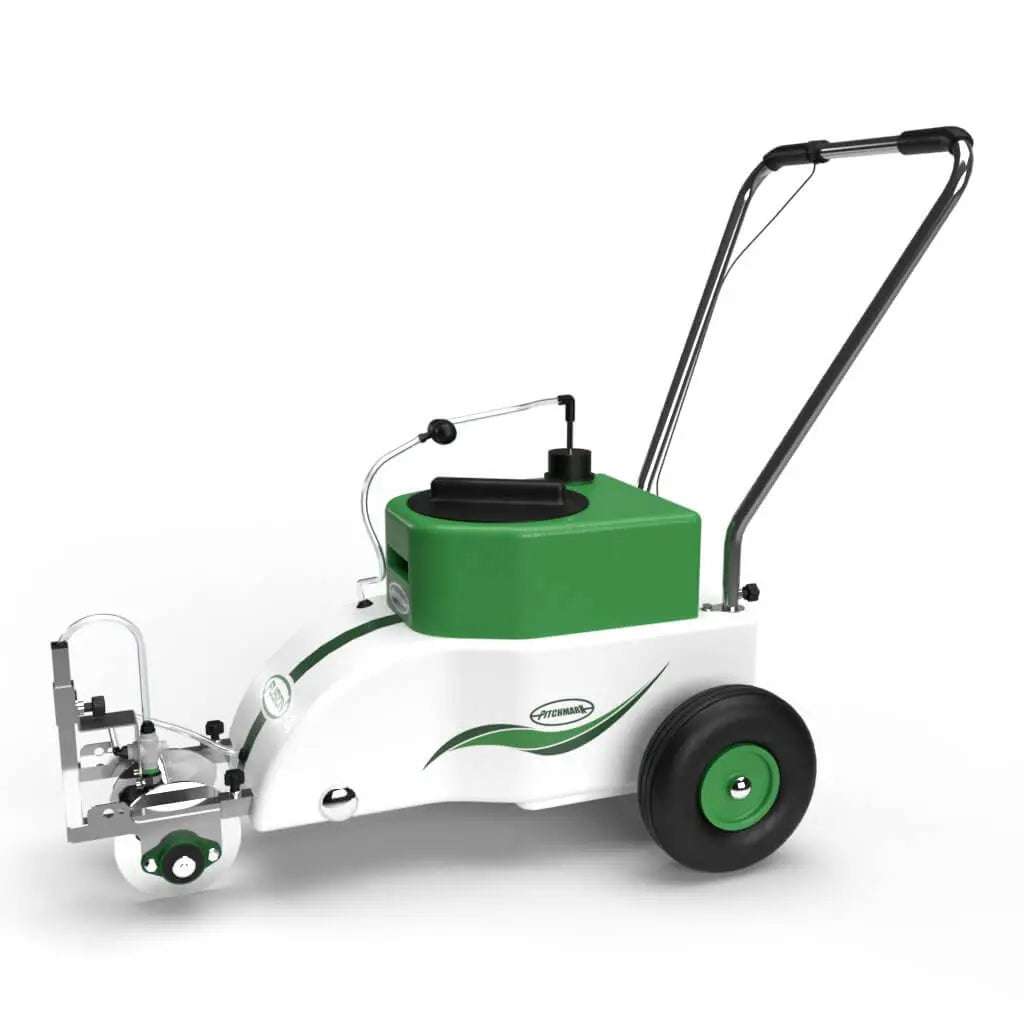

The Pitchmark Fusion is at the pinnacle of line marking in terms of appearance, usage, and cost. It combines the style and engineering of its older sibling, the Hybrid, with a new-style high-density polyethene (HDPE) body instead of a steel chassis.



🚚 Estimated Delivery: 2–3 working days

🚛 Machines are delivered by pallet. Order by 3pm for delivery between … and ….

⚡
Order before 3pm Monday–Friday and we dispatch the same day.

Features

Battery-powered spray line marker that applies paint via a pump and sprayhead nozzle.

Designed for natural grass sports pitches.

Adjustable line width for different sports requirements (50mm to 120mm).

Unique three-wheeled design for excellent manoeuvrability and spray accuracy.

Advanced patent-pending front wheel technology combined with a proven Eco range spray system

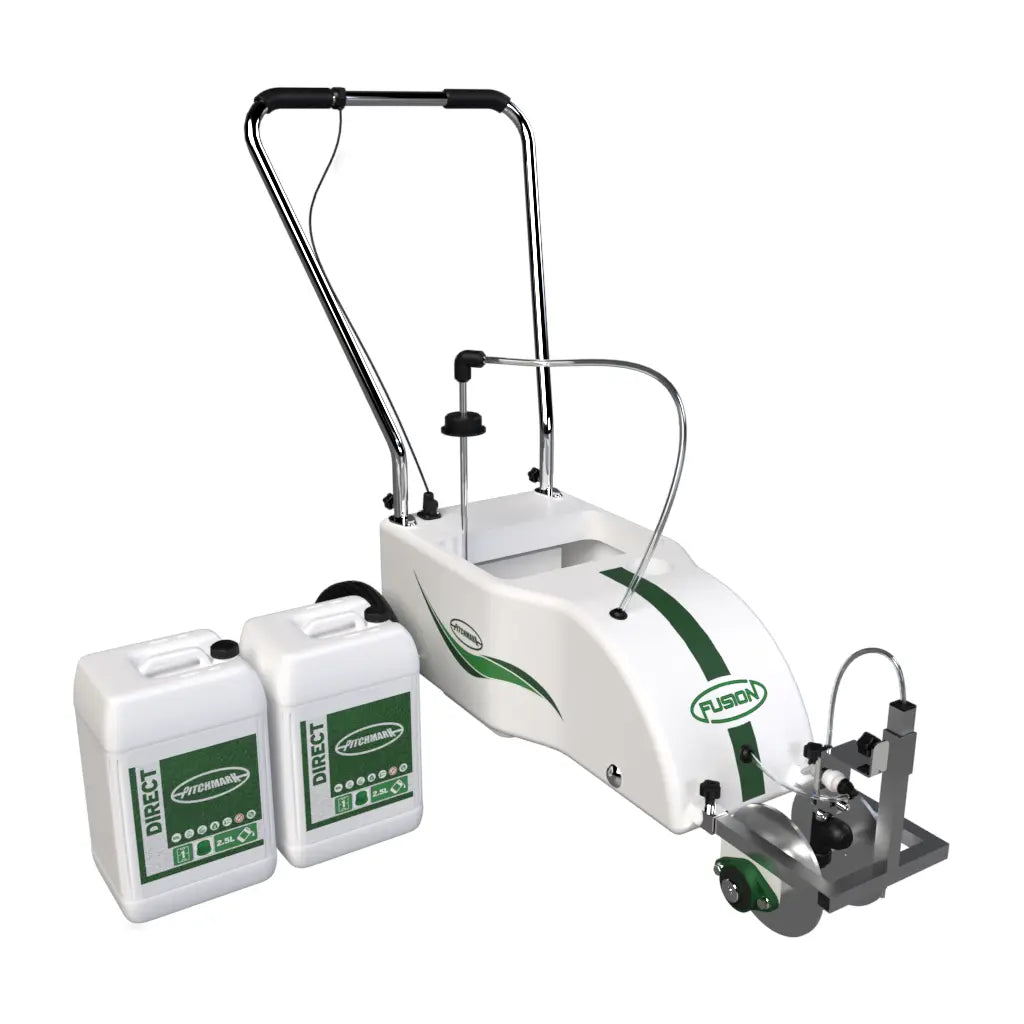

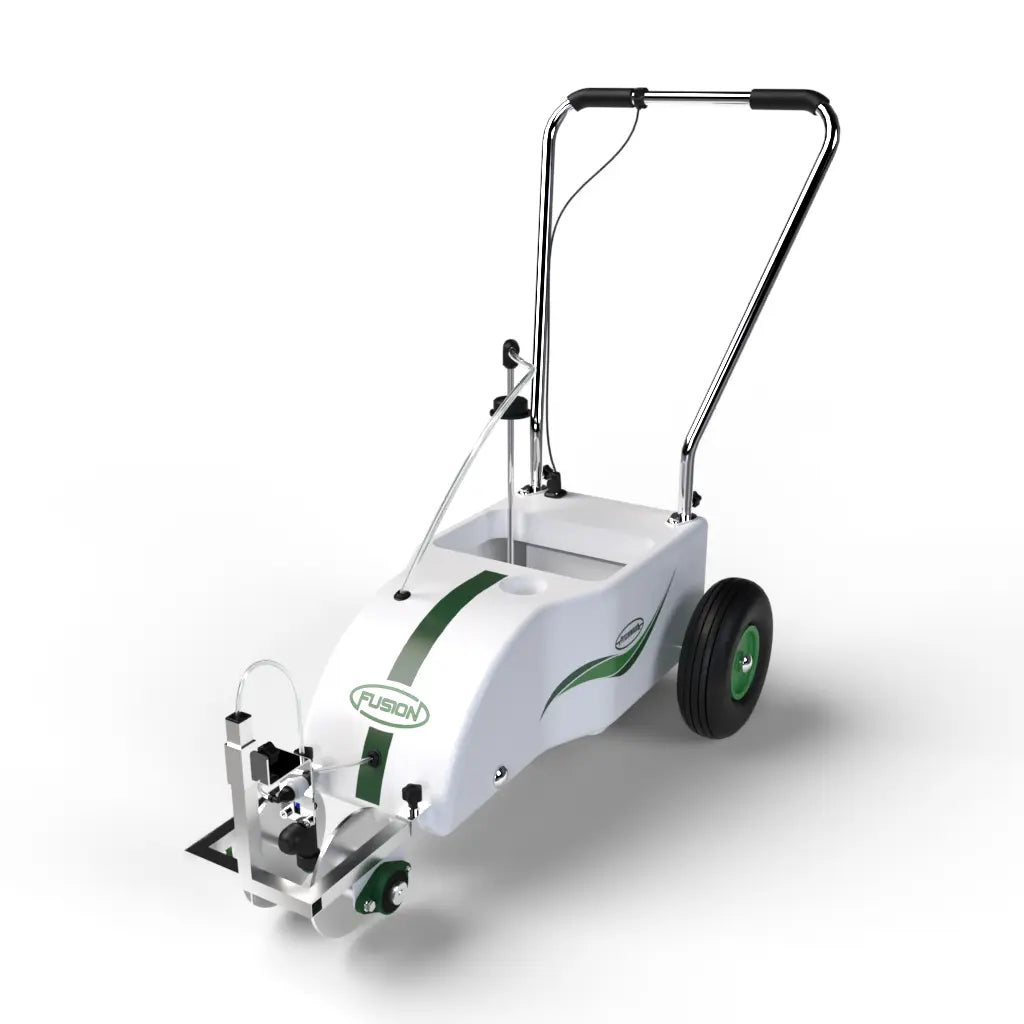

Body holds 1 x 10L or 2 x 5L containers, with space for an aerosol can

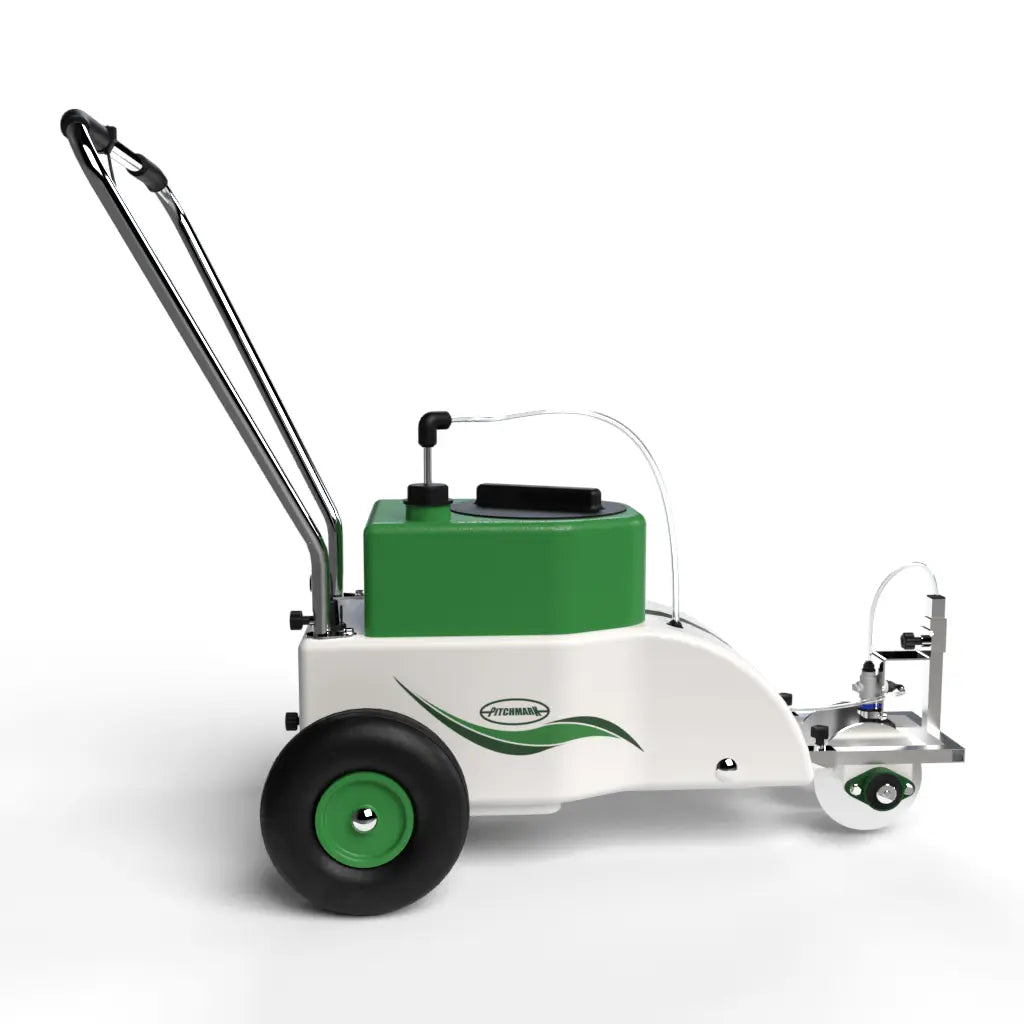

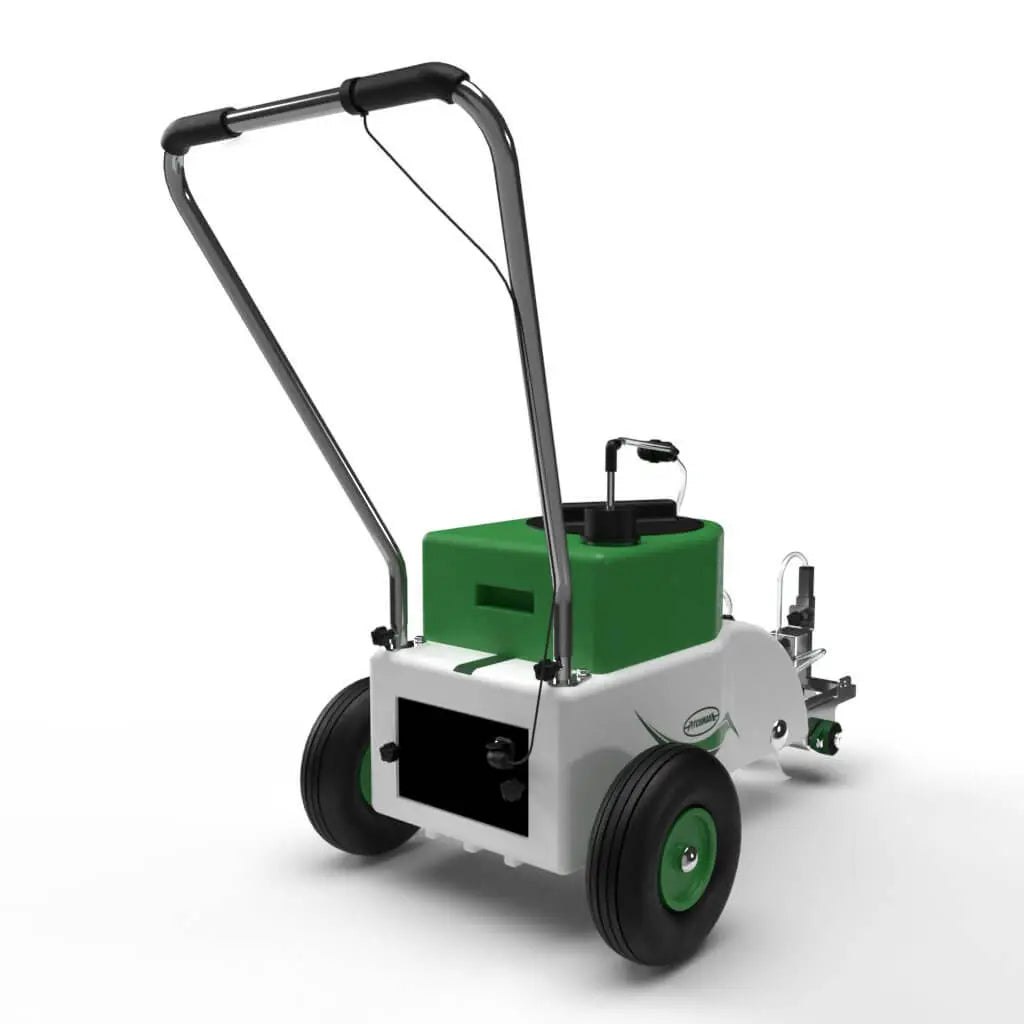

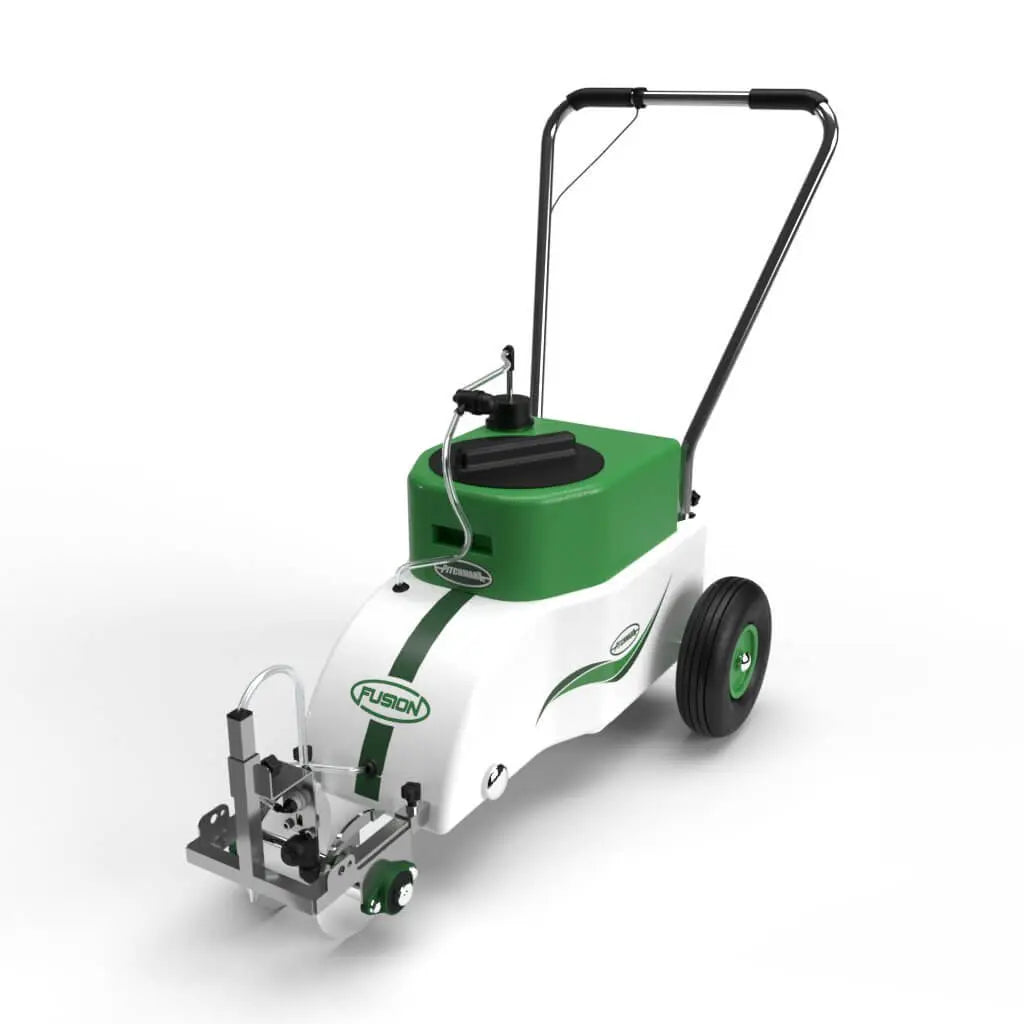

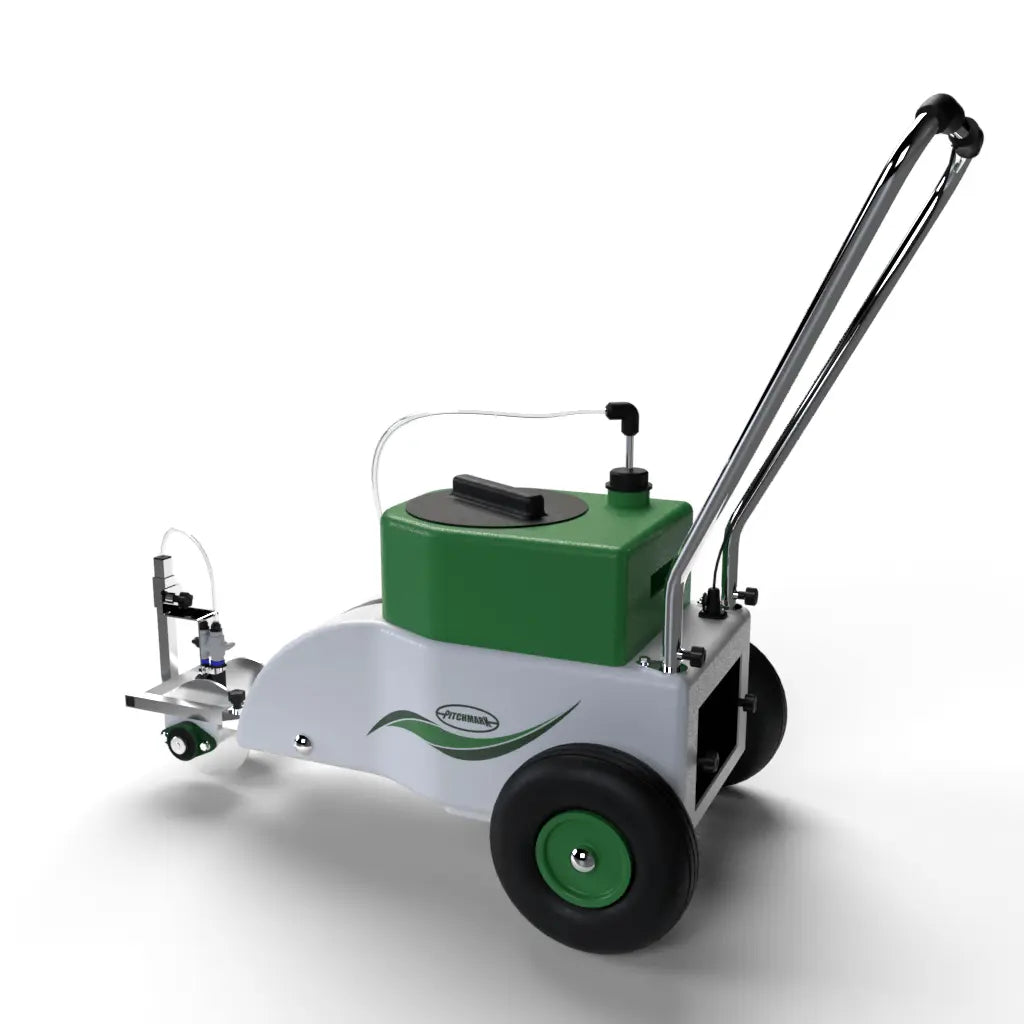

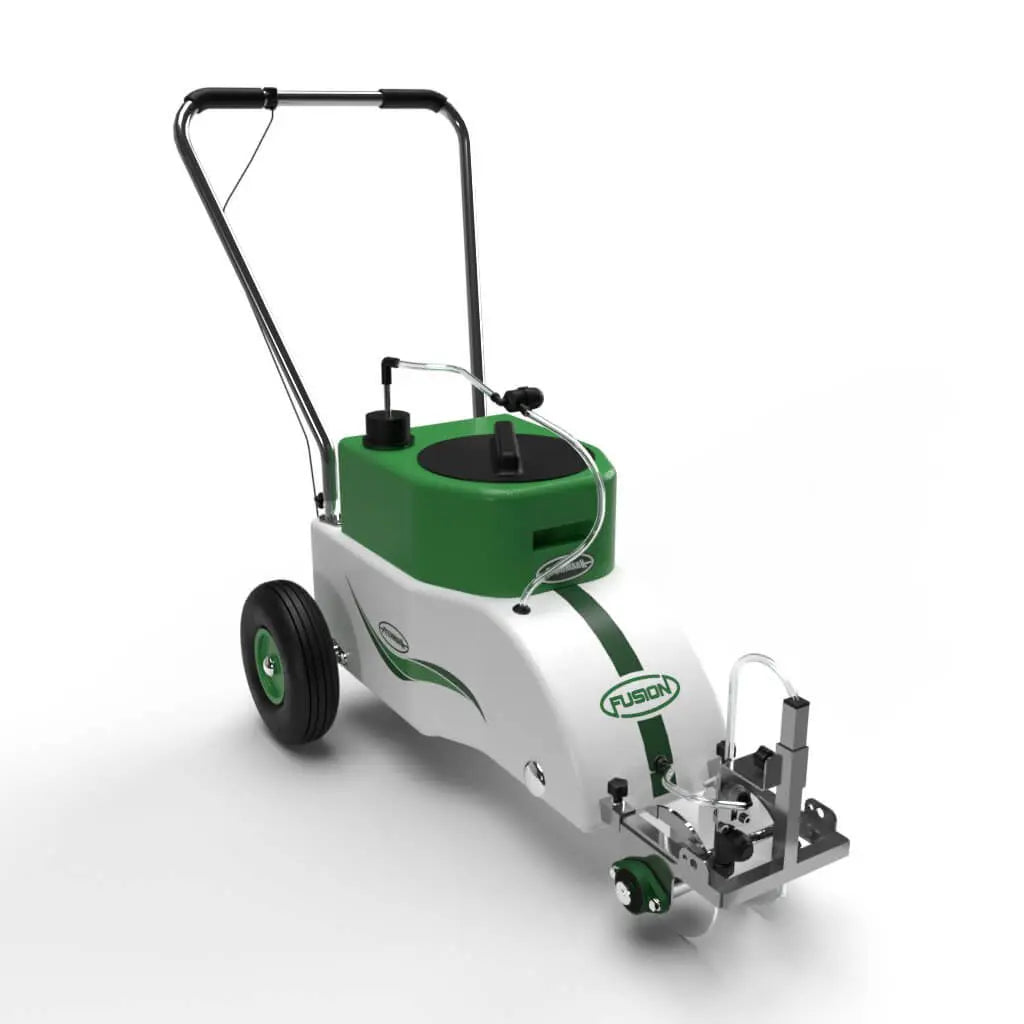

Optional 25L drop-in paint tank for extended marking sessions

Made in Britain and meticulously crafted by hand in Bristol, UK

Comes with a 3-year manufacturer’s warranty (register online)

Specifications

Battery: 12V 9Ah SLA – marks up to 6 football pitches on one charge.

Construction: High-density polyethylene (HDPE) chassis with zinc-coated parts for longer life

Wheels: Solid puncture-proof wheels for smooth operation on all grass surfaces.

Pump: High-pressure Shurflo diaphragm pump.

Filtration: 2-stage filtration system to prevent nozzle blockages.

Charging: Quick-access charging point for hassle-free recharging.

Optional Extra: 25L drop-in paint tank (green).

Warranty: 3 years manufacturer’s warranty.

Made in Britain: Manufactured to the highest standards.

Care and Maintenance

Clean After Every Use: Flush the system with clean water.

Battery Care: Fully charge the 12V battery after each session.

Regular Inspections: Check nozzles, tubing, fittings, and pump for wear. Replace parts if needed.

Storage: Store in a dry, frost-free environment.
